Cable 1.53CEFBL Cable Flat 1.5mm 3c&e Blue Air Cond

Name: Cable 1.53CEFBL Cable Flat 1.5mm 3c&amp;e Blue Air Cond
SKU: 12101
Price: 313.20 AUD
Availability: InStock

Sold: 0

$313.20 Ex GST

Availability: In-Stock

Add to cart

Buy Now

Categories: Cable and Wire Electricals Flat

Description

Description

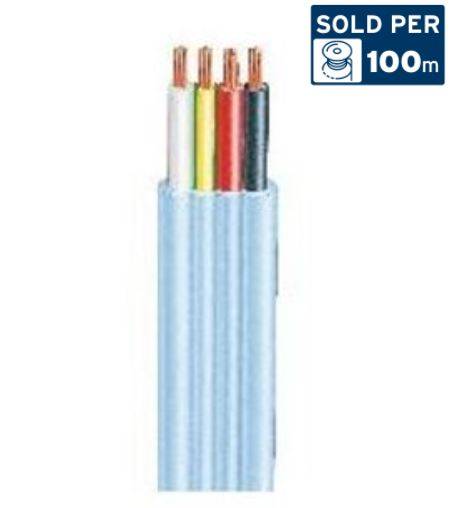

CBL1.53CEFBL 1.5mm 3 Core and Earth Flat, Blue Air Con Cable

Olex-Blu is a durable and robust 3C+E cable specifically designed for air conditioning and single-phase applications. What’s new? This product is an extension of our current TPS cable, with the added benefit of a blue coloured sheath for easy identification during installation.

Insulation	V-90
Nominal Outer Sheath Thickness	0.6mm
Earth Conductor Cross Section	1.5mm2
Colour	Blue
Rated Voltage	450/750V
With Green/Yellow core	Yes
Nominal Overall Diameter	15.7 x 5.5
Nominal Insulation Thickness	0.6mm
Outer sheath	PVC
Insulation resistance at 20 Degrees Celcius	14.0hm/km
Approximate Weight	12.0kg/100m
Cable Length	100m
Maximum DC Resistabce of the Conductor at 20 Degrees Celcius	13.6Ohm/km
Type of Conductor	Class 2
Conductor Cross Section	1.5mm2
Number of Earth Cores	1
Number of Cores	3
Conductor material	Copper
