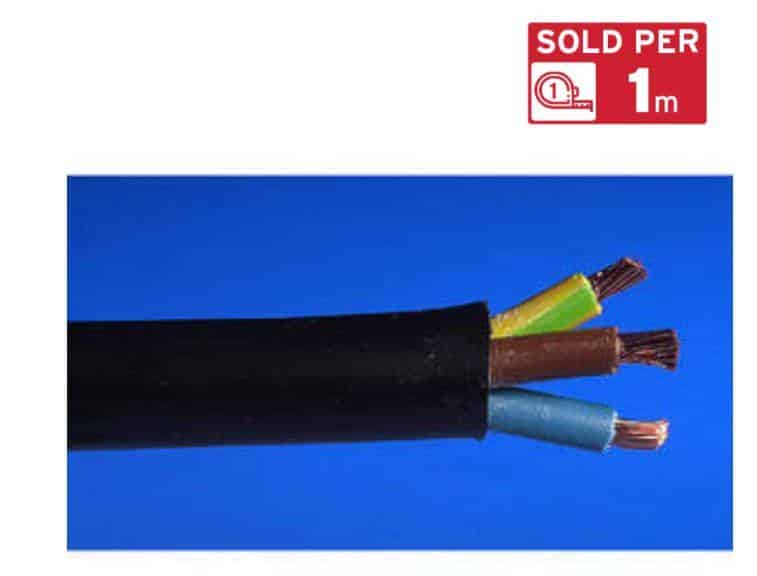

2.53CODBK 250/440V V-90 PVC Insulated Ordinary Duty Industrial Flexible Cable, 3 Core, 2.5 sq-mm x 100m, Black
$673.20 Ex GST
Availability: In-Stock
Add to cart
Buy Now
| Description | Industrial Flexile Cable Type: Ordinary Duty Nominal Cross Section: 2.5 sq-mm Core: 3 Core Stranding: 50/0.25 Length: 100 m Sheath Material: V-90 PVC Insulation Material: V-90 PVC Outside Diameter: 10.2 mm Conductor Material: Plain Annealed Copper Voltage: 250/440 V Current: 20 A Color: Black Insulation Thickness: 0.8 mm Core Color: Brown Blue Green/Yellow Sheath Thickness: 1.1 mm DC Resistance: 7.98 Cl/km @ 20 deg C Temperature Rating: 105 deg C |
| Length | 100.0 |
| Temperature Rating | 105 deg C |
| Color | Black |
| Insulation Thickness | 0.8 mm |
| Nominal Cross Section | 2.5 sq-mm |
| Insulation Material | V-90 PVC |
| Item Name | Industrial Flexile Cable |
| EAN/UPC | 2000000021218 |
| DC Resistance | 7.98 Cl/km @ 20 deg C |
| Type | Ordinary Duty |
| Sheath Material | V-90 PVC |
| Sheath Thickness | 1.1 mm |
| Length | 100 m |
| Voltage | 250/440 V |
| Conductor Material | Plain Annealed Copper |
| Outside Diameter | 10.2 mm |
| Stranding | 50/0.25 |
| Current | 20 A |
| Core Color | Brown, Blue, Green/Yellow |
| Standards and Approvals | AS/NZS 1125, AS/NZS 3808, AS/NZS 3191 |
| Core | 3 Core |
